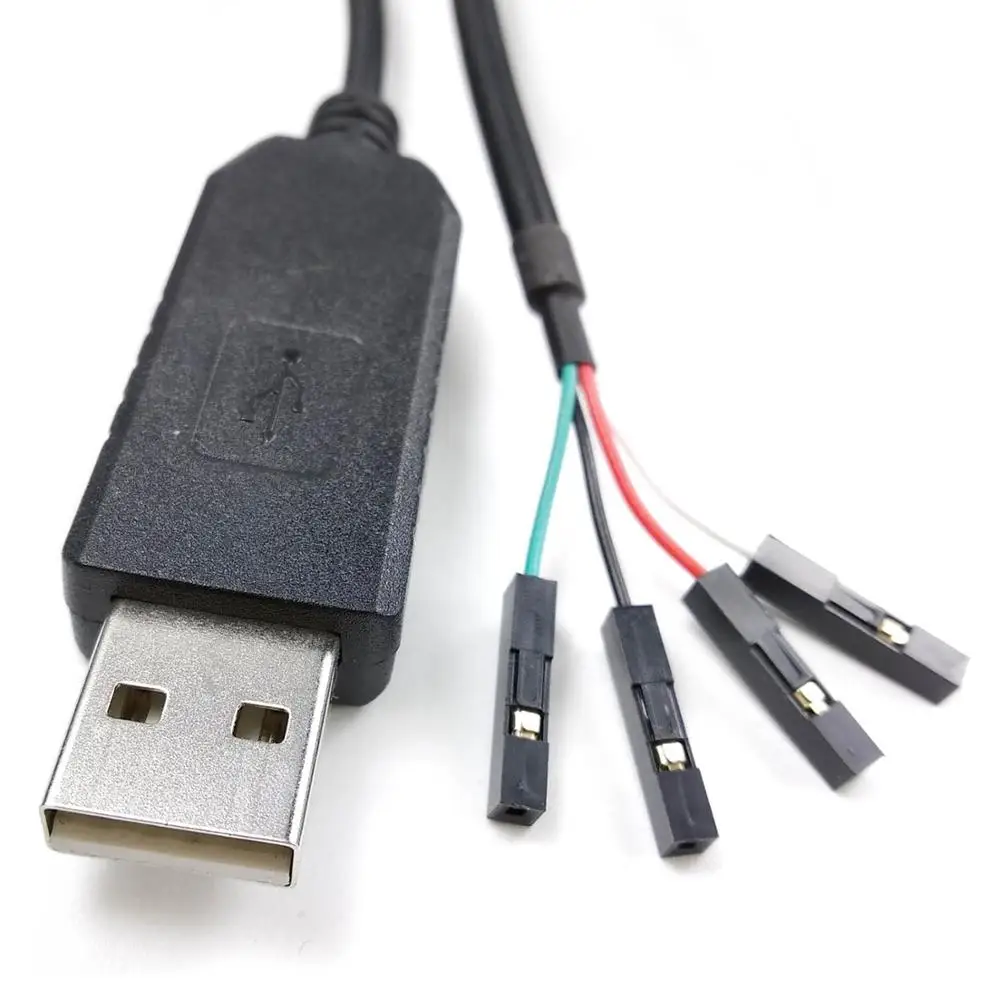

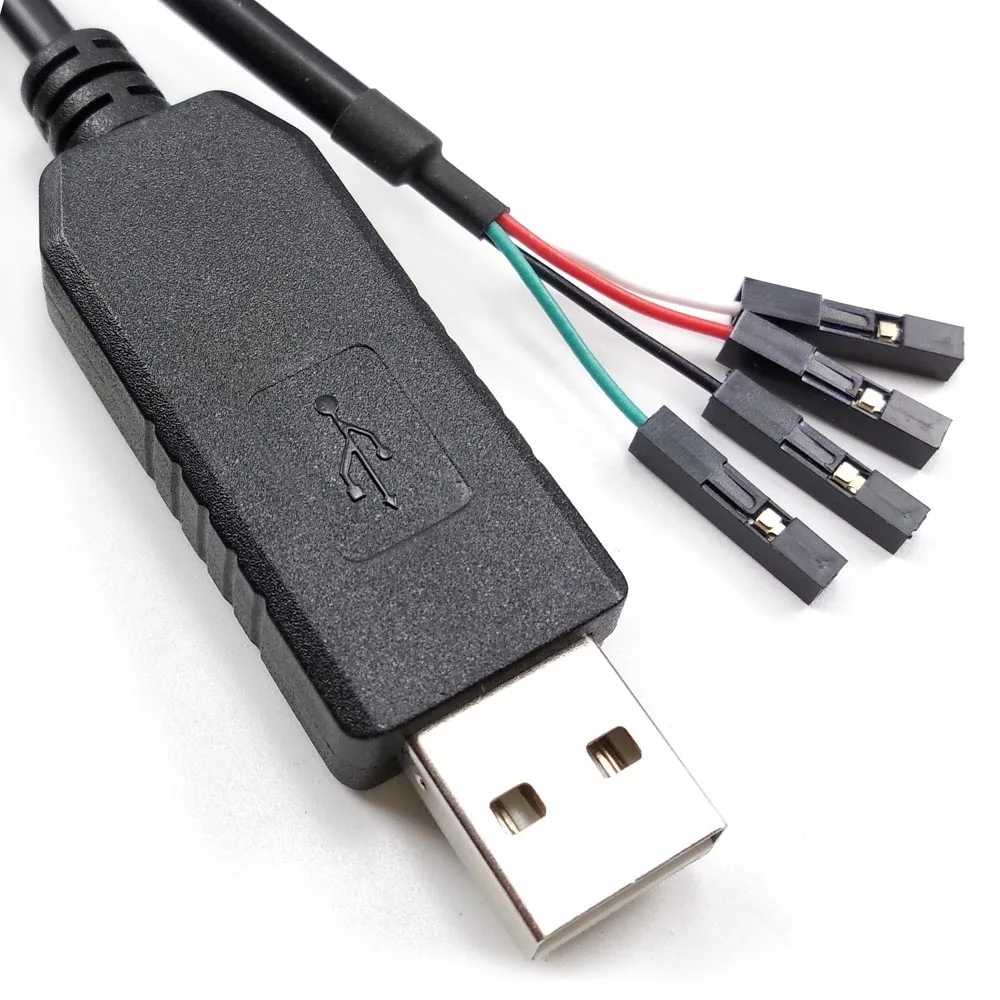

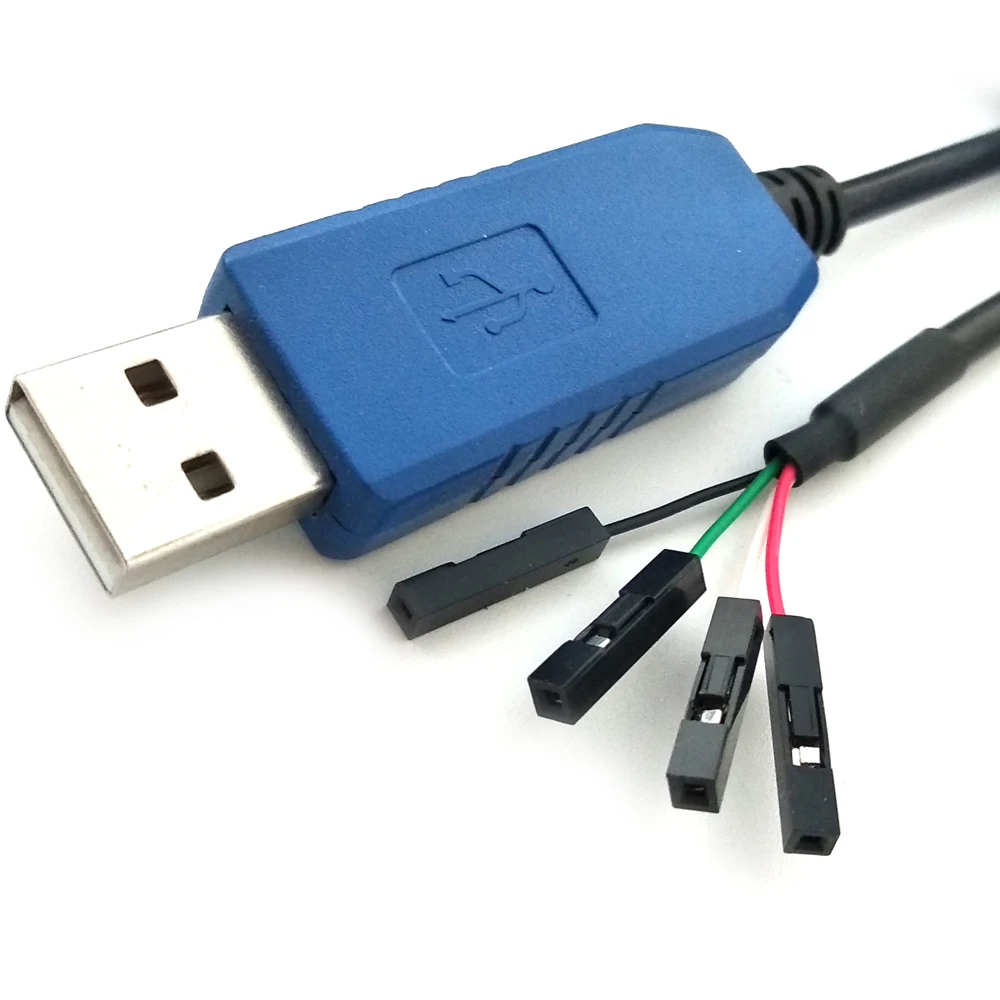

silabs cp2102 usb ttl 3.3v mcu cpus plc flash cable for raspberry pi compatible adafruit 954



silabs cp2102 usb ttl 3.3v mcu cpus plc flash cable for raspberry pi compatible adafruit 954

The best product you are looking for is "silabs cp2102 usb ttl 3.3v mcu cpus plc flash cable for raspberry pi compatible adafruit 954". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..

Product Details

Name	Details
Buy now just	US $3.88
Discount
Product id	1210884164
Vendor	SINFORCON Company Store
Category	Computer & Office - Computer Cables & Connectors

Buy Now On Aliexpress

Computer Cables & Connectors

Computer Cables & Connectors

Computer Cables & Connectors

Computer Cables & Connectors

Computer Cables & Connectors

Computer Cables & Connectors

Description :



• USB 2.0 compliant, full speed(12Mbps)
• CP2102 USB TTL 3.3v level
• compatible with TTL-232R-RPI cable
• No level shift chip, not RS232
• Integrated 1024-Byte EEPROM for Vendor ID, Product ID serial number, power descriptor, release number and product description strings
• All handshaking and modem interface signals
• Data bits: 5, 6, 7, 8.
• Stop bits: 1,1.5 and 2
• Parity odd, even, mark, space, no parity
• Baud rate: 300bps to 1Mbits
• Hardware or X-On/X-Off handshaking supported

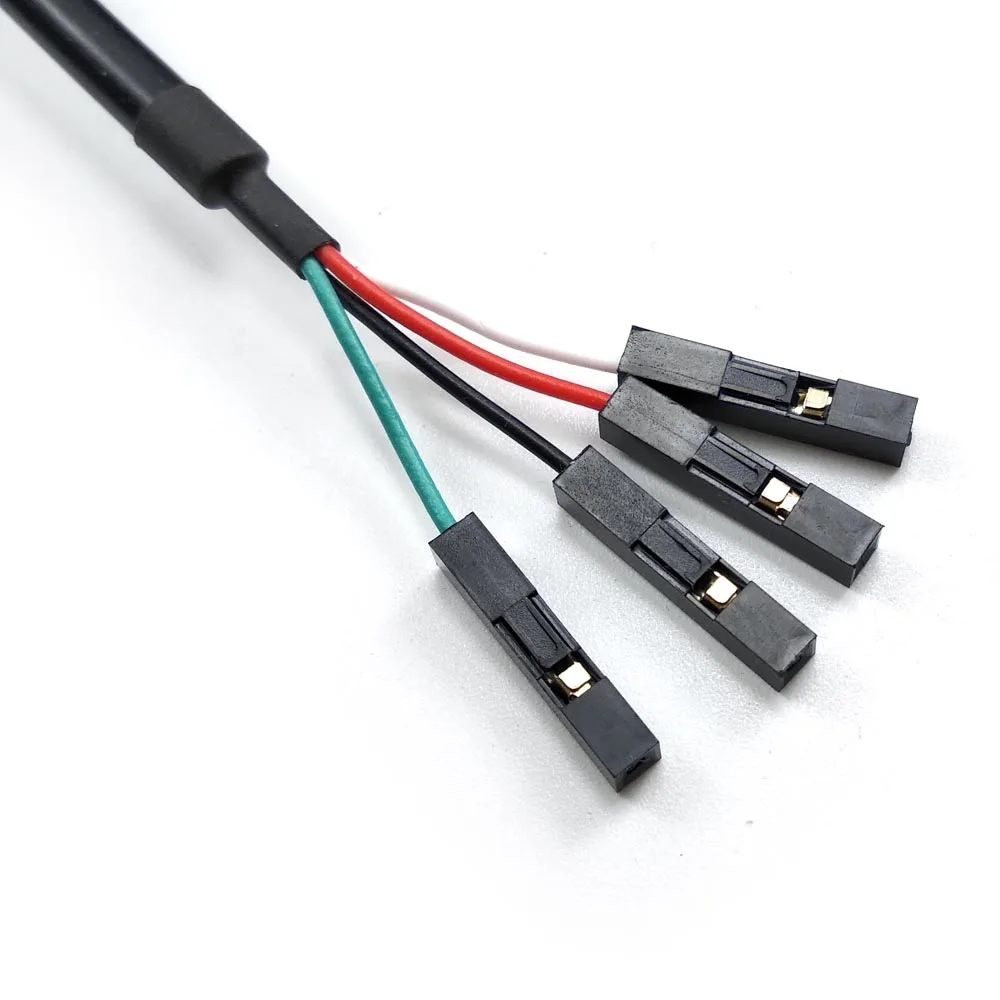

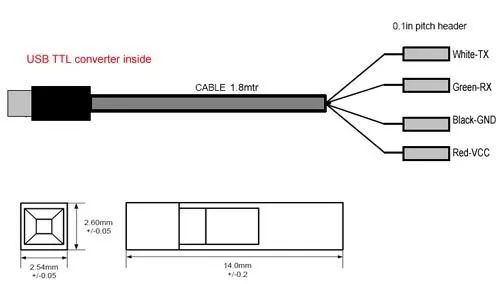

• 28AWG *4 core, 1.8m, PVC jacket, black
• All materials are RoHS compliance
• PE bag for each.

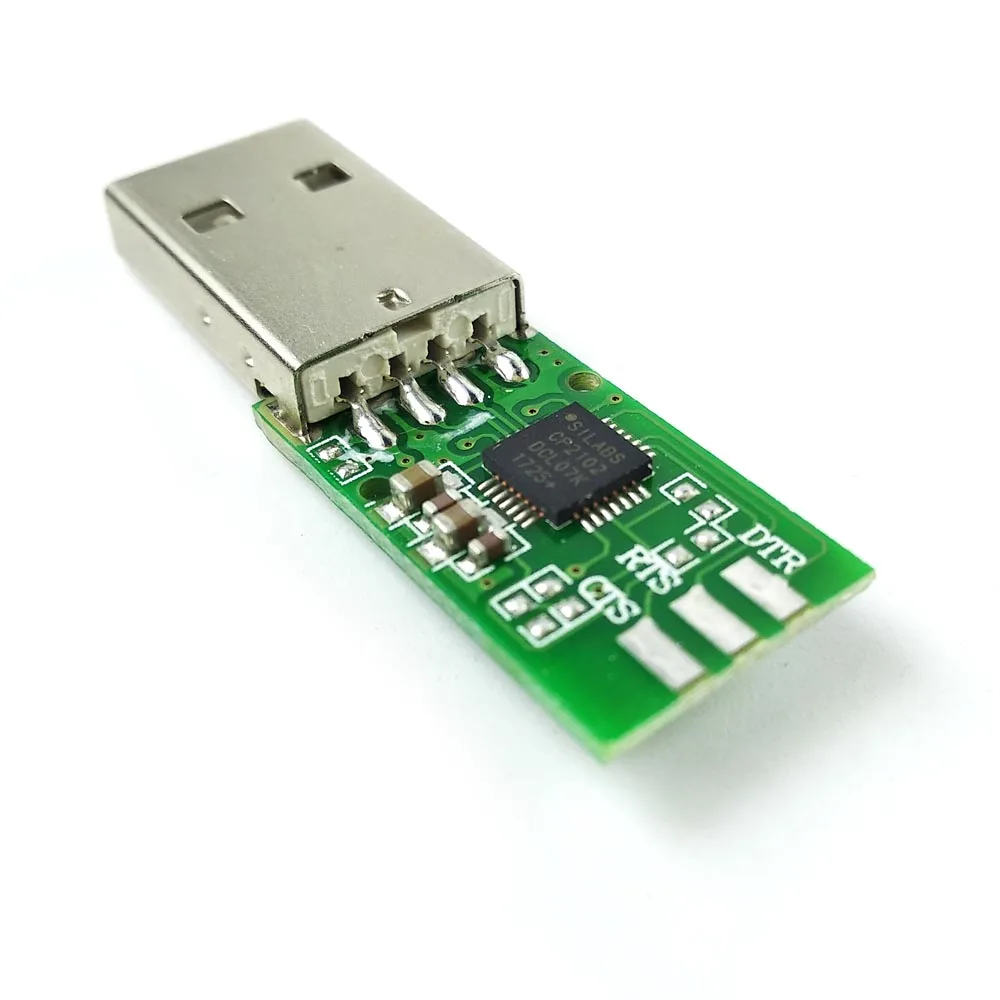

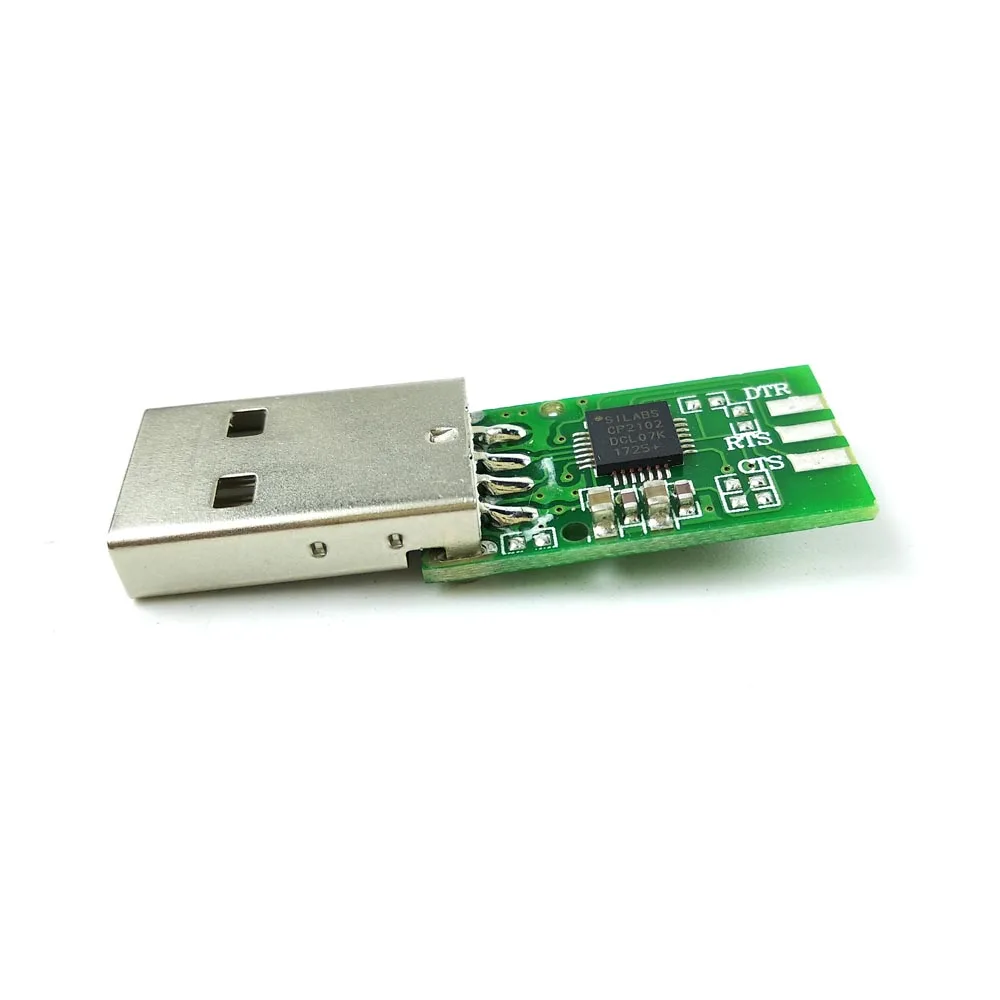

  About CP2102 Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101

USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
-   Data bits: 5, 6, 7, and 8
-   Stop bits: 1, 1.5, and 2
-   Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-Event character support
-Line break transmission

Virtual COM Port Device Drivers
-Works with existing COM port PC Applications
-Royalty-free distribution license
-Windows 10/8/7/Vista/Server 2003/XP/2000
-Mac OS-X/OS-9
-Linux

USBXpress™ Direct Driver Support
-Royalty-Free Distribution License
-Windows 7/Vista/XP/Server 2003/2000
-Windows CE

Example Applications
-Upgrade of RS-232 legacy devices to USB
-Cellular phone USB interface cable
-USB interface cable
-USB to RS-232 serial adapter
Supply Voltage
-Self-powered: 3.0 to 3.6 V
-USB bus powered: 4.0 to 5.25 V

CP210x USB to UART Bridge VCP Drivers

The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication with CP210xproducts. These devices can also interface to a host using the direct access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below: AN197: The Serial Communications Guide for the CP210x

Download Software

The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archived Application Note Software.

• Windows 7/8/8.1/10 (v6.7.3) »
• Windows XP/Server 2003/Vista/7/8/8.1 (v6.7) »
• Windows 2K (v6.3a) »
• WinCE »
• Macintosh OSX (v4) »
• Linux »
• Android »

Download for Windows 7/8/8.1/10 (v6.7.3) Download for Windows XP/Server 2003/Vista/7/8/8.1 (v6.7) Download for Windows 2K (v6.3a) Download for WinCE Download for Macintosh OSX (v4) Download for Linux *Note: The Linux 3.x.x version of the driver is maintained in the current Linux 3.x.x tree at www.kernel.org.

Download for Android
